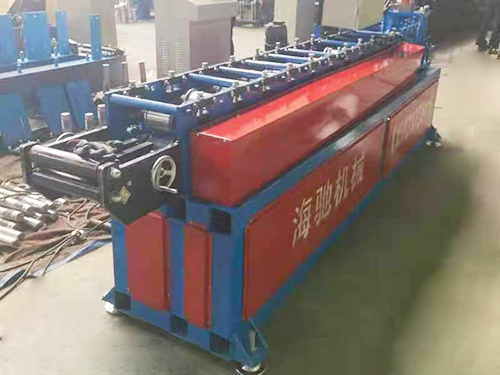

75 light steel shutter equipment

The products produced by 75 light steel shutter equipment have the characteristics of beautiful appearance and can be spliced and installed in a variety of colors

75 light steel shutter equipment is widely used in power plants, hotels, hotels, industrial plants, warehouses, laboratories and other places. It has the functions of ventilation, rain proof, sand proof, bird proof, single, double-layer, electric, manual alternative, etc. the electric shutter can be made according to needs or domestic motors

75 parameters of light steel shutter equipment:

total length of equipment: 3M width 0.6m height 1.2m

Motor Power: 3kw

production speed: 15 m / min

transmission mode: chain transmission

machine forming shaft: a total of 11 rows of shafts

shaft material: 45 # steel

shaft diameter: 45mm solid shaft

wheel material: 45 # steel hard chrome plating

forming part: it is divided into Seiko wheel rotating forming, with good forming effect, Reduce friction between wheels and raw materials, and facilitate debugging

numerical control system: PLC panel, kel-320 display

counter: domestic photoelectric rotary encoder, a40s6-600-2-12-acp

molding: 3kw pump station, shearing equipment

thickness of pressing plate: 0.3-0.8mm

Random accessories: a user manual
