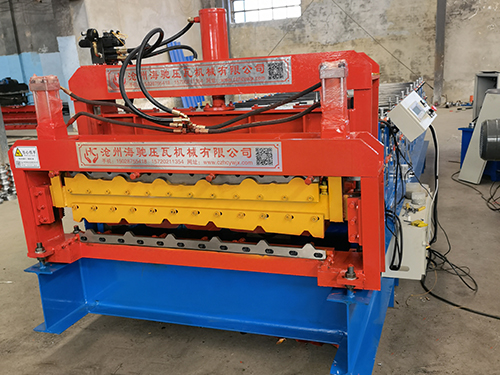

Two layer tile press

The installation and placement of the two-layer tile press on a good and stable foundation can prevent the machine from vibration during operation, so as to improve the accuracy, performance and prolong its service life of the machine. The operation efficiency and production capacity of the two-layer tile press. The machine is mainly composed of a feeding platform, an automatic cutting device for steel plate forming, a hydraulic system, a machine core computer control system, an automatic length measurement system, etc

key points for the placement of two-layer tile pressing machine:

1. For the installation foundation, the following matters need to be important: a strength must be able to follow the weight of the machine; B base surface must be flat

2. Places with good power supply

3. Adjustment: the machine stand must be leveled to maintain the degree

4. For the convenience of operation and maintenance, please be more than 50cm away from the wall

5. Refer to the instructions for the installation of two-layer tile press

operating procedures of two-layer tile pressing machine:

1. The automatic control system of the whole unit of the two-layer tile pressing machine adopts a highly integrated network, which makes the automatic system powerful

2. The two-layer tile press also has the advantages of operation, maintenance, maintenance, mechanical debugging, easy die replacement, etc

3. The two-layer tile press adopts high-quality automatic control software to realize production information management

4. The two-layer tile press adopts Taiwan Delta dvp14es host computer, and uses the electronic control system with text screen display, which is easy to operate and easy to use

three tips for debugging the two-layer tile press:

1. If the tile press deviates to the right when pressing the steel plate, you need to find a hard object to pad under the left corner. If it deviates to the left, on the contrary, you need to pad under the right corner

2. First measure the height of the four corners of the front and rear rows of the tile press from the gantry to the upper end of the shaft, then from row to row, find a line to straighten, check whether it is in a straight line, and adjust the left and right sides of the lower shaft to a horizontal state

3. Find the two-layer tile pressing machine row and the first row, then lock the nuts on both sides, pull a straight line in front of and behind the middle wheel, and adjust the gap between the upper and lower shafts, and then adjust the machine along the straight line
