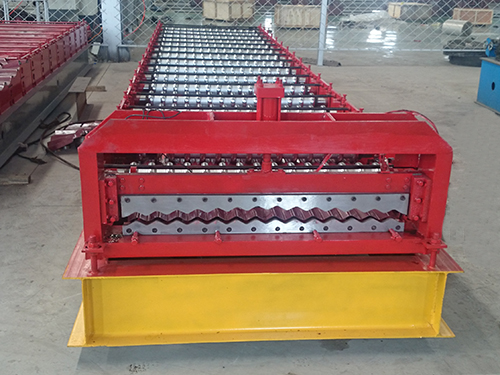

Water ripple machine
The water ripple machine has good structure and beautiful appearance. It has the characteristics of space saving and simple operation, and is especially suitable for customers with small site and on-site construction
the components of the water ripple machine include: the whole machine, PLC computer control system, hydraulic pump station system, and fully automatic post shearing system
the water ripple machine adopts double-layer design, one machine is dual-use, with small floor area, convenient transportation and cost saving. Our after-sales service is perfect, and we can design and manufacture according to user requirements, and guide users in production, installation, commissioning and maintenance
the water ripple machine is mainly composed of a feed introduction platform, a molding host, a molding shear device, a hydraulic station, a computer control system, etc. The optional configuration includes ordinary discharging machine and hydraulic discharging machine. The operation of upper and lower layers is simple. You only need to control each layer through the conversion button on the electric control cabinet, and the power can also control each layer through the clutch. The models of the upper and lower layers are determined according to the customer's requirements
features of water ripple machine:
1. Water ripple machine adopts high-quality automatic control software to realize production information management
2. The automation control system of the whole unit adopts a highly integrated network to improve the performance of the automation system
3. The water ripple machine also has the advantages of operation, maintenance, maintenance, mechanical debugging, easy mold replacement and so on
technical parameters of water ripple machine:
1. Overall dimension of equipment: 6400mm × 1300mm × 1300mm
2, motor power 3kw+3kw
3, working voltage 380V
4, production speed 8-10 M / min
5, transmission mode chain transmission
6, machine forming shaft 840 type 11 row shaft, 850 type 9 Row shaft frame: 250h steel, vertical plate 14mm
7, fine machining of 45 # steel seamless steel pipe for color adjustment
8, wheel material 45 # steel hard chrome plating
9, shaft material 45 steel shaft diameter: 70mm
10 The forming part is divided into Seiko wheel rotating forming, which has good forming effect, reduces the friction between the wheel and raw materials, and is convenient for debugging
11. PLC panel of CNC system, kel-320 display
12. Counter: domestic photoelectric rotary encoder, a40s6-600-2-12-acp
13, pressure plate thickness 0.3-0.8mm
