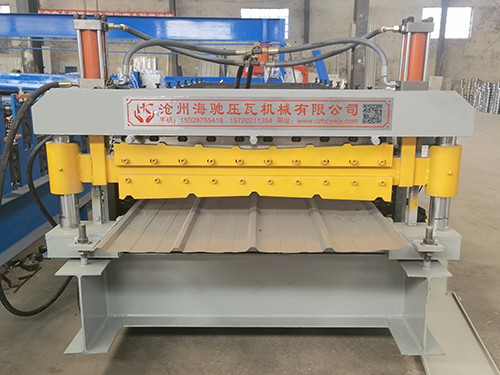

900-920 double-layer color steel tile press

The 900-920 double-layer color steel tile press includes: the whole machine, PLC computer control system, hydraulic pump station system, and fully automatic post shearing system

900-920 double-layer color steel tile press adopts automatic control software to realize production information management. The automatic control system of the whole unit adopts highly integrated network, which makes the automatic system have good performance. The 900-920 double-layer color steel tile press also has the advantages of operation, maintenance, mechanical debugging, easy die replacement and so on

900-920 the production of double-layer color steel tile press is to change between high and low stands. The color steel plate with one contour is installed on the low stand, and the roller for producing another plate type is installed on the high stand. The production line has a uncoiler and a common cutting shear. If the color plate is fed into the low roll, a plate type is formed; For example, the roll is fed into the high-rise roll and another section is formed. The appearance of 900-920 double-layer color steel tile press saves the floor space of the equipment, which is especially suitable for color steel tile manufacturers with small sites and installation sites to produce pressed color steel tiles. The production of replacing two kinds of plates with different sections also improves the output rate. Characteristics of the control system of double-layer color steel tile press; The control system is simple to operate and is one-time molding. The production process is: uncoiling - forward molding - molding - cutting. The control accuracy of this system is good, and the shearing accuracy of each piece is less than 1mm, which meets the process requirements. The program runs stably. The executive part of the double-layer color steel tile pressing machine has two hydraulic solenoid valves of frequency converter drive motor, hydraulic station motor and cutter. The detection part of double-layer color steel tile press includes: pulse encoder for detecting the length of color steel tile, up and down travel switch of profiled, up and down travel switch of cutter, up and down operation button of profiled, up and down travel button of cutter, emergency stop switch, hydraulic start and stop switch, etc

900-920 double-layer color steel tile press main technical parameters:

1. Installation size: 95000mm × 1800mm × 1500mm

2. Number of forming passes: 10/10 passes

3. Roller material: 45 # steel

4. Roller plating thickness: 0.05mm

5. Cutter material: cr12

6. Forming speed: 9-10m/min.

7. Electric control system: industrial computer PLC control

8. Host power: 3kw

9. Hydraulic station power: 3kw

10 plate thickness: 0.4-0.7mm

11. Plate expansion width: 1000mm
