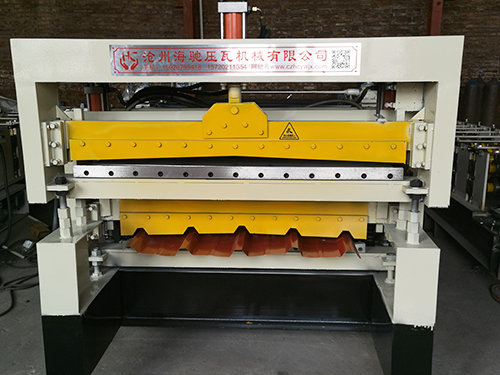

980 type color steel tile pressing machine for flat plate striped bottom plate

Technical parameters of 980 type color steel tile press for flat plate striped bottom plate:

length × wide × Height: 5500mm × 1300mm × 950mm

middle plate thickness: 12mm

forming shaft: diameter 70mm

forming wheel: material 45 # forging and hard chromium plating

transmission mode: sprocket, chain

needle cycloid reducer, Motor power: 3kw

number of forming rows: 11 rows

fully automatic computer fixed length cutting system:

pump station motor: 3kw four levels

cutting die: Gr12

forming speed: 8-10m/min

pressing thickness: 0.2-0.7mm

rolling range: width 1000mm

machine weight: about 2.1t

tile press roll material: material 45 forging hardness HRH 55 ° -57 °

excellent effect after molding. Service area: 860mm, size: 10mm Center distance 127mm
