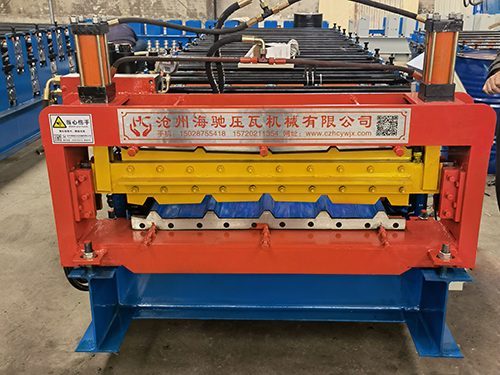

Wufeng 820-900 double-layer tile press
Wufeng 820-900 double-layer tile press combines the two models, with beautiful appearance. It has the characteristics of space saving and simple operation, and is especially suitable for customers with small site and on-site construction
Wufeng 820-900 double-layer tile press is mainly composed of feed introduction platform, forming host, forming shear device, hydraulic station, computer control system, etc
the operation of upper and lower layers is simple. You only need to control each layer through the conversion button on the electric control cabinet, and the power can also control each layer through the clutch
ordinary discharging machine and hydraulic discharging machine are optional. The models of the upper and lower layers are determined according to the customer's requirements
the products produced by Wufeng 820-900 double-layer tile press have flat and beautiful appearance and even paint lines, and are widely used in industrial and civil buildings, such as factory buildings, warehouses, locomotive hangars, aircraft hangars, gymnasiums, exhibition halls, cinemas and other rooms and walls
Wufeng 820-900 double-layer tile press main parameters:
1, overall dimension: 5700mm × 1500mm × 1500mm
2. Forming method: roll forming (pre press forming)
3. Number of forming rows: v900 roll 10 row pre press forming, v840 roll 11 row pre press forming
4. Feeding width: 1000mm
5. Plate thickness: 0.6mm
6. Equipment shaft diameter: Φ 70mm
7, host power: 3kw
8, rolling speed: 10m-12m/min
9, machine weight: About 3000kg
10, pump station motor: 3kw
11, equipment frame: 300h steel
12, shear knife material: Cr12 (chromium 12)
13, equipment transmission: sprocket, chain
14, automatic computer fixed length cutting system
