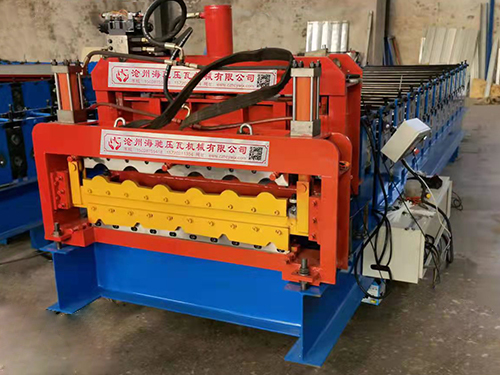

840-800 glazed tile double-layer tile press

840-800 glazed tile double-layer tile press is mainly composed of left and right body, bottom connecting rod, top chassis cover, sliding seat, hexagonal runner, belt pulley, gear mechanism, sheave mechanism, cam mechanism, lubrication pump, oil circuit system, electric control part, etc. The equipment should be wiped frequently and kept clean. There should be no mud and water

840-800 upper die stamping process of glazed tile double-layer tile press: the motor drives the input shaft through the belt pulley, drives the upper shaft through the pinion and big gear, and drives the sliding seat equipped with the upper die up and down through a set of cam mechanism to realize tile pressing

840-800 glazed tile double-layer tile pressing machine workbench is a new type of molding equipment. The indexing and positioning is realized by the gear set installed on the end of the upper shaft, driving the shift pin gear, and pulling the grooved wheel installed on the hexagonal runner shaft. At both ends of the upper shaft, there is a return cam conjugate with the pressing cam installed on the same shaft, and the positioning of the lower die in the working position is realized through the positioning rod and positioning plate. Lubrication pumps are installed in the boxes on the left and right sides. When the machine is working, the oil pipes deliver lubricating oil to all friction moving parts

840-800 glazed tile double-layer tile press uses galvanized steel plate or colored steel plate or aluminum plate of different colors as raw materials. The products produced are used to build the external roof and wall panels and internal decorative panels or ceilings of houses, so as to increase the beauty and practicality of roofs or walls. The surface of the finished product produced by 840-800 glazed tile double-layer tile press is flat, smooth and free of scratches, which is convenient for construction and installation. The operation and maintenance cost of 840-800 glazed tile double-layer tile press is OK; High precision and size of finished products; Stable machining operation; Low energy consumption. The widened 828 glazed tile machine can produce roof panels with different appearances according to production needs

840-800 glazed tile double-layer tile press technical parameters:

length × wide × 6400mm high × 1300mm × 950mm

forming shaft: diameter 70mm 45 # quenching and tempering

forming wheel: material 45 # forging and hard chromium plating

transmission mode: sprocket, chain

Motor: 3kw

number of forming rows: 11 rows

fully automatic computer fixed length cutting system:

pump station motor: 3kw four stages

cutting die: Gr12

forming speed: 8-10m / min

pressing thickness: 0.2-0.7mm

pressing width: 1000m/1200mm
