Rolling shutter equipment products

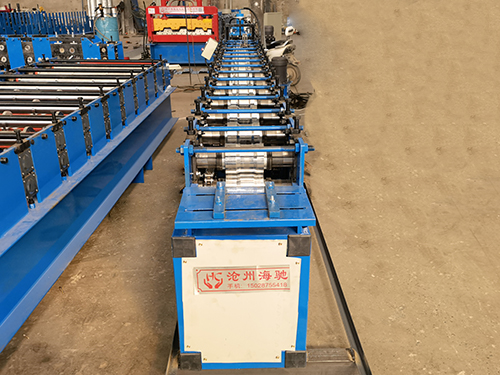

The roller shutter door equipment is mainly composed of a feeding platform, a molding host, a molding shear device, a hydraulic station, a computer control system and other parts, and is used in conjunction with the selvedge machine. The roller shutter equipment is optionally equipped with ordinary discharging machine and hydraulic discharging machine

the roller shutter equipment adopts automatic control software to realize production information management. The automatic control system of the whole unit adopts a highly integrated network, which makes the automatic system have good performance. The rolling shutter equipment also has the advantages of operation, maintenance, maintenance, mechanical debugging, easy mold replacement and so on

technical parameters of roller shutter door equipment:

length × wide × 11000mm high × 1300mm × 950mm。

forming shaft: diameter 70mm 45 × tempering

forming wheel: material 45 × forged and plated with hard chromium

transmission mode: sprocket and chain

motor: 4kw

number of forming rows: 24 rows

automatic computer fixed length cut-off system:

pump station motor: 3kw four levels

shearing die: Gr12

molding speed: 8-10m/min

pressing thickness: 0.2-0.7mm

pressing width: 1000mm
