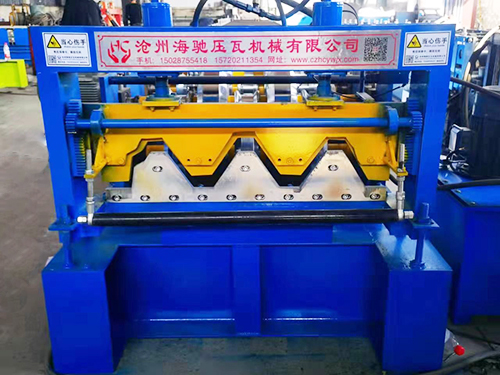

![600 type large corrugated board equipment](/uploads/220623/1_145302513.jpg)
600 type large corrugated board equipment
![](/enimage/dianhua.png)
The 600 type large corrugated board equipment is mainly composed of loading rack, loading rack support, feed inlet platform, forming host, forming shear device, hydraulic station, computer control box and other parts
600 large corrugated board equipment main structural features:
1. Simple structure and beautiful appearance. Because the whole machine adopts profile steel structure and is processed as a whole after welding, it has simple and reasonable structure, good load storage capacity and stable operation
2. Adopt automatic fixed length cutting, punching, accurate positioning, neat appearance of plate-shaped head and tail, and small deformation
3. Other important parts and structures of the equipment are used as accessories of domestic enterprises, thus determining the performance of the equipment
4. The installation and debugging of the equipment are convenient and easy to operate
5. The equipment has low noise and no pollution
600 large corrugated board equipment technical parameters:
1. Machine forming shaft: a total of 20 rows of shafts, the surface of the profiled wheel is hard chrome plated, and the overall dimension is 10500mm × 1400mm × 1500mm。
2. Forming part: it is divided into Seiko wheel rotating forming, which has good forming effect, reduces the friction between the wheel and raw materials, and is convenient for debugging
3. Profiled shaft diameter: 70mm solid shaft riser 14mm
4. Production speed: 8-10 M / min
5. Shear knife: made of Cr12 material and quenched at high temperature, it is composed of three knives
6. Machine weight: 4T
7. Transmission mode: chain transmission
8. Counter: color domestic photoelectric rotary encoder, a40s6-600-2-12-acp
9. Distribution box: Delta PLC, composed of low-voltage electrical appliances
10. The thickness of the pressing plate is 0.3-0.8mm
11. Equipment underframe: 350 H steel
12. Attached accessories: a set of ordinary feeding rack
13. Warranty period: 12 months
