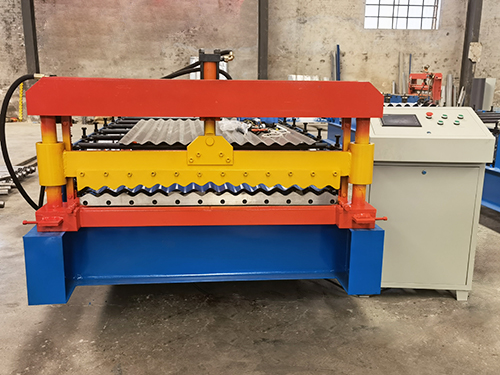

850 water ripple tile press

Technical parameters of 850 water ripple tile press:

length × wide × 6400mm high × 1300mm × 950mm

forming shaft: diameter 70mm 45 # quenching and tempering

forming wheel: material 45 # forging and plating hard chromium

transmission mode: sprocket Chain

automatic computer fixed length cutting system:

pump station motor: 3kw four-stage

cutting die: gr12

motor: 3kw

number of forming rows: 11 rows

forming speed: 8-10m/min

pressing thickness: 0.2-0.7mm

pressing width: 1000m

excellent effect plate width: 850mm

side and end overlap of color plate

850 water ripple tile press is divided into three parts: new roll selection part, molding part and shearing part. The new roll sorting is powered by the motor, and the chain drives each roll to rotate with each other. Different forces are applied. The profiled part is driven by the hydraulic cylinder to move the mold up and down, which can make the color steel plate press out into regular sections like tiles, and then cut into appropriate sizes as required under the action of the shear knife. In this process, the PLC electric control box is used to control the whole process of pressing, dragging and shearing

850 water corrugated tile press produces a series of colored metal profiled plates, which are all kinds of corrugated profiled plates formed by rolling and cold bending with colored coated steel plates. Including color profiled steel plate, color arc steel plate, color corrugated tile, color steel plate ceiling plate, etc. Color profiled steel plate equipment: applicable to the maintenance structure and decoration of industrial and civil buildings, warehouses, large-span steel structure houses, etc. It has the characteristics of light weight, good strength, rich colors, long service life, maintenance free, convenient construction and so on

850 water ripple tile press is formed by pressing with rolling equipment. The color steel plate enters the tile press equipment, and is pressed into various plates through various pressing rollers, and then sheared and processed into suitable plates that can be used

with the popularization and application of colored steel tile machines, many large industrial and mining plants, warehouses, steel roof trusses and large equipment now use colored steel tiles, or colored steel plates, or even glazed colored steel equipment, which makes the appearance of the buildings in my life more colorful, beautiful and tidy
