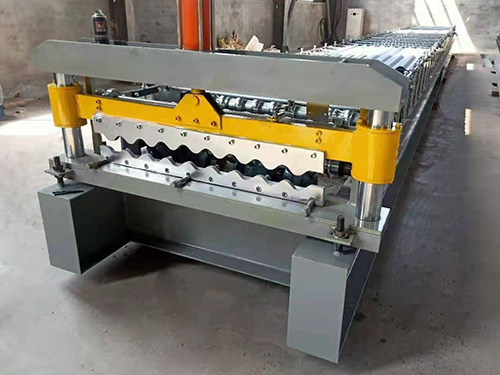

780 large circular arc horizontal hanging plate
The forming part of 780 large circular arc horizontal hanging plate tile press is precision wheel rotation forming. This forming method has good effect, reduces the friction between raw materials and wheels, and has the characteristics of convenient debugging
780 large circular arc horizontal hanging plate tile press has the following characteristics: simple operation, easy maintenance, automatic operation, etc. The color coated plate produced by the tile pressing machine has novel appearance and uniform wave crest
780 large circular arc horizontal hanging plate tile press has a beautiful appearance and smooth lines, which can meet the different needs of customers. It is applicable to the inner and outer walls of industrial and civil buildings. The laying is non directional, the installation is simple and convenient, and the construction can be used as a horizontal plate
780 characteristics of large circular arc horizontal hanging plate:
1. Make horizontal paving wall, with smooth lines and vivid shapes
2. Horizontal, vertical or diagonal installation methods can realize the layered effect of light and shadow interleaving
3. Naturally formed arc, with a small curvature radius of 12M, can be used as a roof system with complex curved surface
the selection of plate profiled steel plate is a kind of steel plate mostly used for architectural decoration. Due to the use of steel plate and reasonable size design, it is widely used in the roofs and walls of various buildings. It is convenient and flexible to install. Abiding by the contract is limited by any factor of the building. Profiled steel plate has a reliable snap design, which prevents the infiltration of rainwater and can withstand the test of any adverse weather conditions. It is widely used, and can be combined with various core materials and thermal insulation materials to form non thermal insulation or thermal insulation roof composite panels. Symmetrical appearance, no exposed fastening screws, neat and beautiful, good performance and stability. It is stable and can withstand the change of thermal expansion at the same time. Beautiful appearance, convenient installation, smooth drainage, economic building materials
780 technical parameters of large circular arc horizontal hanging plate tile press:
1. Installation outline dimension of tile press: 12000mm × 1350mm × 1300mm。 Packaging: bare
2. Total weight of tile press: About 3500kg and 5500kg
3. Thickness of feeding plate: 0.25-0.8mm, feeding width: 1000mm
4. Main power of tile press: 5.5kW, hydraulic shear power: 3kw
5. Pressure of hydraulic station: 10-12mpa
6. Electric control system: the whole machine is controlled by industrial computer PLC
7. Working speed of tile press: 8-12mm/min
8.1. Material of roller of tile press: hard chrome plated on 45# steel surface, Hardness hr55 ° -57 °
9. The equipment frame is welded by 350 # I-steel, and the thickness of the medium plate is 16mm
10. Transmission mode: 1-inch chain drives the sprocket drive
11. Roller: diameter 70mm
12. Number of rows of forming shafts: 29 rows
