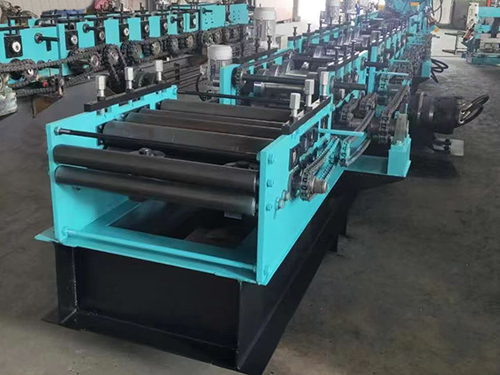

CZ steel forming machine products
![](/enimage/dianhua.png)
C-shaped steel forming machine is a set of forming machine that can produce various specifications of C-shaped purlin products. The machine is mainly composed of passive loading frame, leveling device, punching device, cutting device after forming, hydraulic station, computer control system, etc
c-shaped steel forming machine automatically cuts and punches, which has reached the level of the same industry, and the product sales are good all over the country. Its products have beautiful appearance, reasonable structure and beautiful tile shape, which are unanimously praised by the color steel products industry and foreign merchants
The wall thickness of section steel produced by C-shaped steel forming machine can be made according to the needs of span, which simplifies the production process and improves the production efficiency. It can produce various profiles with uniform wall thickness but complex cross-section shape that are difficult to produce by general hot rolling methodc-shaped steel forming machine adopts automatic flying saw punching, which is easy to operate. Main uses: the product can be used as the main force bearing structure of large and medium-sized industrial and civil buildings. C-shaped steel machine, also known as C-shaped steel sandalwood bar machine, is one of many varieties of tile pressing machine, and is a basic type of tile pressing machine. Unlike the color steel plate forming machine, it is hydraulic power, and the power is large, generally about 22KW, similar to the plate shearing and bending machine. The general control process is complex, and it is mostly controlled by PLC
technical parameters of C-shaped steel forming machine:
equipment length 7600mm, width 950mm, height 1000mm
equipment power 11 kw, hydraulic station power 11 kw
the roll is made of bearing steel (Gr15) and annealed after forging
the base adopts 320 I-steel
use the lower five and upper four leveling to determine the flatness
secondary molding is adopted to determine the squareness and right angle of the product, and the size of the upper side can be made
the thickness of rolled material is 1.5mm-3mm (the thickness can also be designed according to user requirements)
the width of rolled C-section steel is 80mm-300mm
rolling speed 8-9m/min
new butt joint adjusting steel sleeve is adopted, which is simple and stable
the squareness of the equipment and C-section steel is the advantages of the same industry, such as the adjustable speed, fast punching, fast cutting, etc
